Fixing STEMLAND name board, and understanding SSD

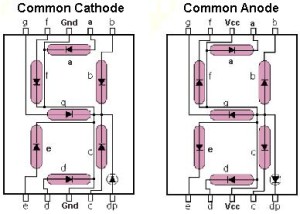

Some of the 7th std children took fixing the STEMLAND name board as a project, they started off by learning how a SSD (Seven Segment Display) works. Then they assembled the units in a bread board, but there was a bug they couldn’t power up with a 9V battery or else the SSD would burn out. To tackle this they added resistors to control the current. The other bug was some of the SSD were common anode and other common Cathode:SSDOnce the type was figured out the SSD were powered up and tested.

IMG_20170228_133631336 IMG_20170228_133626556 IMG_20170228_133613805 IMG_20170228_133611109
