Interfacing BO Motor with Arduino

~ Vimal, Abilash, Prabha

We had learnt to interface a toy DC motor with the arduino platform. The idea is to design a sensor controlled vehicle which navigates based on the intensity of the light which falls on it.

We used a LDR(Light Dependent Resistor) as a sensor element for the project. The analog value of intensity of the light falling on it is measured and it ranges from 0 – 1024 (10 bit resolution limitation of arduino). We used a dual H bridge IC named L293D to actuate the motor. To get the desired torque, we have selected a geared motor with 300 RPM @ 12VDC.

For this task we used only one geared motor and one half of the dual H Bridge. For initial prototyping we used the breadboard, the enable pin of one half of the IC is connected to 5VDC, two IOs are assigned namely 4 and 7 to control the outputs of the IC. The LDR is connected to the analog pin A0. The LDR circuit is designed as a voltage divider circuit. The analog value obtained from the task is compared continuosly with the threshold limit of 950. If the value is changed the motor will rotate in clockwise direction else in anticlockwise direction.

Documentation on fix issue for nltk,nltkdata

To fix the issued and resolve to install nltk and nltk data

Unable to acquire dpkg fronted lock (/var/lib/dpkg/lock-fronted), is another process using it.

 sudo apt-get install python-nltk

E: Could not get lock /var/lib/dpkg/lock-frontend – open (11: Resource temporarily unavailable)

E: Unable to acquire the dpkg frontend lock (/var/lib/dpkg/lock-frontend), is another process using it?

Step-1

Find and kill all apt process which is running.

               Ps -A | grep apt

Now kill the process using the below commands

             kill -9 processnumber

                                or

             kill -9 SIGKILL processnumber

use this commad,

nltk-> sudo apt-get install python-nltk

nltk data-> sudo python -m nltk.downloader -d /usr/share/nltk_data all

step-2:- Check the location of lock-frontend

ls varlib/dpkg/

step-3 :- Remove the lock-frontend

sudo rm var/lib/dpkg/lock-frontend

step-4:- Verify

ls /var/lib/dpkg/

Refer to this link:  https://curiousviral.com/unable-to-acquire-dpkg-frontend-lock/

Ron-documentation

What is ssh?

ssh is a kind of network protocol to communicate between two or more computer. communication between client to server.

ssh is default install in all ubuntu pc’ s.

ssh -client tool to communicate to the server.

We need to install the open ssh server in the server pc’ s.

What is open ssh?

Open ssh is the server to running inside the server

For example:-

Go to the terminal, and type this command

~ssh student@10.10.221.104 (It will access the remote server)

~Exit

fs is meant by file system (tries to access the file system -direct access(directory))

Here is the setup process for ron and roff for all system :-Setup_ron_roff_Documentation

Here is the code for ron and roff:  ron and roff code

~Sandhiya



Sky Map

~saranya

I learned about constellation and sky map:

Constellation:

Constellation means group of stars or collection of stars. Yesterday I learned about different type of constellations. Totally 88 constellations are there but in our country they found and named only for 12. Through my experience it was very interesting and I am able to connect the star according to the constellation palan. And I learned about Arunthathi star, usually in our Indian culture  marriage they used to see Arunthathi star after that only they will get marry. After few minutes he introduced sky map. Because we could’t see stars properly.

Sky Map:

Sky map is an application which is used to see stars in the sky. I have experienced with the sky map. I am able see  constellation through the sky map. It was showing all the stars.It was fun and interesting. Here I have attached some snapshot about sky map.















These pictures will show about some of the stars and constellations. Use this application and this will help our children to know about sky and stars etc..

Raman Award Projects – Udavi School

Raman Young Science Innovator Award is a contest for students studying from III to X standards grouped into three. Students from III to IV, V to VIII and IX to X. We heard about this contest and started registering for it on 31st January. The registered students got their login credentials through their mail after 31st January. We submitted their projects on the last date on 10th February (extended to 12th February). 11 students from Udavi School chose their topics and submitted their Innovation projects. They are Abitha, Amsavalli, Hariharan, Kabilan, Punidhavel, Suriya and Vignesh from IX standard. Baranidharan from VIII and Arvindh, Pranav and Vishal from VII standard. The topics were based on their standards.

Abitha (Class IX)

Abitha chose the topic refraction. She studied about refraction in her academic books, so she thought of making it in practical. She made her project using GeoGebra. GeoGebra is a Dynamic Mathematics Software (DMS) for teaching and learning mathematics. She used two mediums. Both of them are air. The incident ray and the refracted ray has the same angle. The refraction index of the second medium increases then the angle decreases.



2.Amsavalli (class IX)

Amsavalli did a project on reflection. She did her project using GeoGebra.When the incident ray falls on the mirror and the ray gets reflected. This is the reflected ray. She showed the angles of the reflection in an animated form.

3.Hariharan (Class IX)

Hariharan chose the topic frequency. He made his project using Arduino. He used an ultrasonic sensor which will detect the object. He wrote his program in Arduino. When any object is placed in front of the ultra sonic sensor it makes beep sound. When the object is far from the sensor the volume becomes low. Based upon the distance of the object to the sensor, the sound will differ.

4.Kabilan (Class IX)

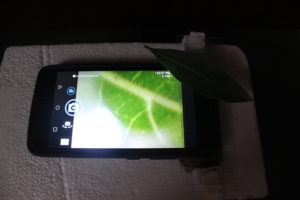

Kabilan made a microscope using a mobile phone and lens of laser light. He placed the object on the lense and it shows the enlarged image of it in the mobile. He made this microscope, because when he was using a microscope the light hurt him. So he wanted to make a microscope which does’t hurt. He tested the microscope by seeing the microscopic view of leaves and insects.


5.Punidhavel (Class IX)

Punidhavel made a piano using resistors, basar and battery. He made his connections in a breadboard. He used resistors and buzzors to make sound. After completing the project he made the sa re ga ma tune.

6.Suriya (Class IX)

Suriya made a pie chart using GeoGebra about the natural gases in the atmosphere.

7.Vignesh (CLass IX)

Vignesh chose the topic frequency. The materials which Vignesh used are ocilloscope, microphone and  341 tuning fork. He measured the frequency of tuning fork with the help of microphone and oscilloscope. By using this we can also measure the heart beat frequency.

8.Bharanidharan (Class VIII)

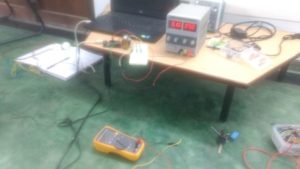

He made an inverter using Arduino. The materials he used are Arduino, Breadboard, voltage regulator, resistor(10 k ohm), 9V battery, transformer, wires and laptop. He made a program to blink the Led at 50Hz. Then he dumped the program in the Arduino. He connected it to a CRO and saw the square waveform. Then he connected the remaining circuits on the breadboard. He used the voltage source from which nine volt DC input is fed to the transformer. The output of the transformer is 230 volt AC. After that he connected a 5 Watts bulb to the ouput. Eventually the bulb glowed.

9.Arvindh (Class VII)

He made his project on slow combution explaining the ignition temperature.

10.Pranav (Class VII)

Pranav made a steam engine.He took two wooden pieces and on each edge he made a hole and put a screw. He placed a tin above the wooden pieces and stuck it with glue. He made a hole on top and one side of the tin. He broke the pen into two and inserted each piece in the two holes. Then he kept a motor which was connected to another wooden piece. A Led was also connected to this wooden piece. When fire is lit up, it goes through the tin and it makes the turbine to rotate.

11.Vishal (Class VII)

Vishal made a project on combution. He made a small stove using two tins. First he took the small tin and made holes then the bigger tin and made holes in it. The smaller tin is placed inside the bigger tin. A vessel is placed on the tin. Using small wooden pieces he made fire. He poured water in the vessel, which got heated quickly.

Students made their project with their full involvement and felt happy after submitting their innovation project.

Silicon Structure

Arun and I, we wanted to make a 3D Silicon structure using Judo Straws to see how it is structured. We found the below video on You Tube and replicated the same

One silicon atom has four shared oxygen atoms. The centre part(the four green straws joining together) inside the cube are Silicon atoms and the corners of the cube are each 4 shared oxygen atoms.
