Designing New STEMland using 3D tool

~saranya

What did I do well?

I learnt to use 3D tool in a short time period. I was learnt to use Google sketch up and Sweet home 3D also I learnt to use x-fig which is 2D design. I was not aware of the 3D tool and I searched internet and got input from our team. Then I took all the measurements (Height, Width and Depth) for the tables, windows, doors, cupboard etc…. Now I am able to do design. It gave me a confidence to try more using the tool.

What went well?

I was able to complete do design by using 2D as well as 3D. I was able to cover all the table and boards. I was to do the design with measurements.

Where to Improve?

I was unable to finish it on time I took 3 days (8 hours) to complete the design.

Snaps are available here.

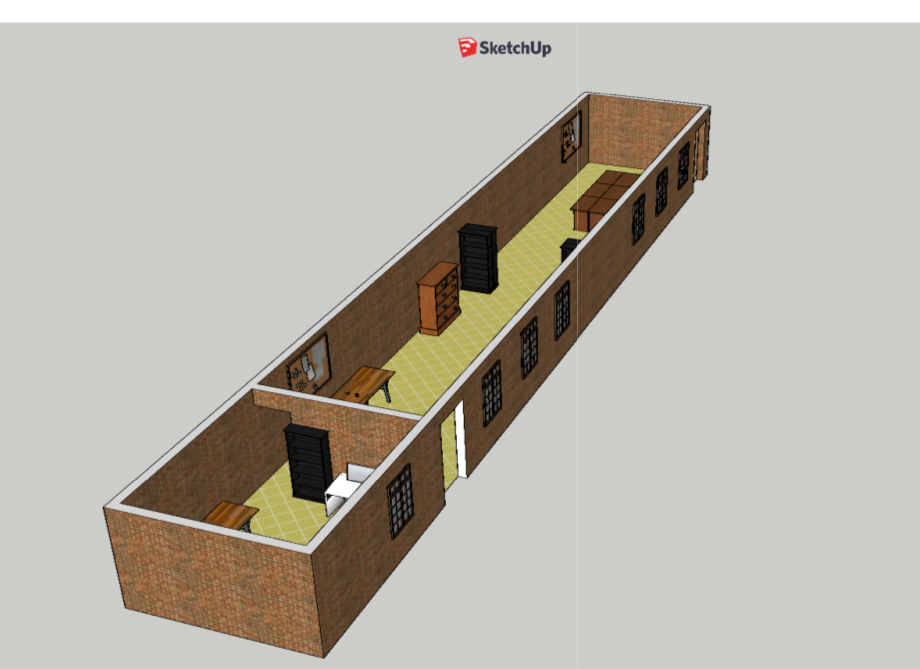

Top view (Google Sketch up)

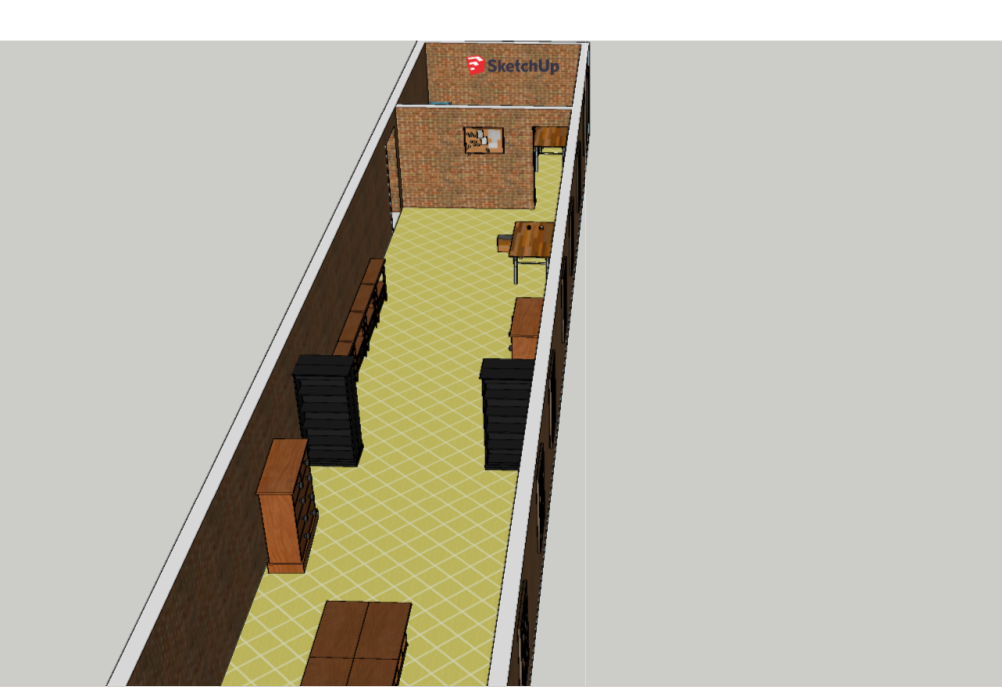

Top view (Google Sketch up)
Top view (Sweet home 2D Design)
Top view (Sweet home 3D design)
