Debugging simulation run errors “integration methods”

In

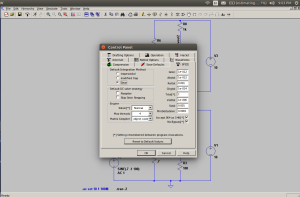

When your simulation can’t complete and ends unexpectedly….. go to the Simulate/ control panel/Spice .. and change the default integration method to “GEAR” and things should run fine..sim1
